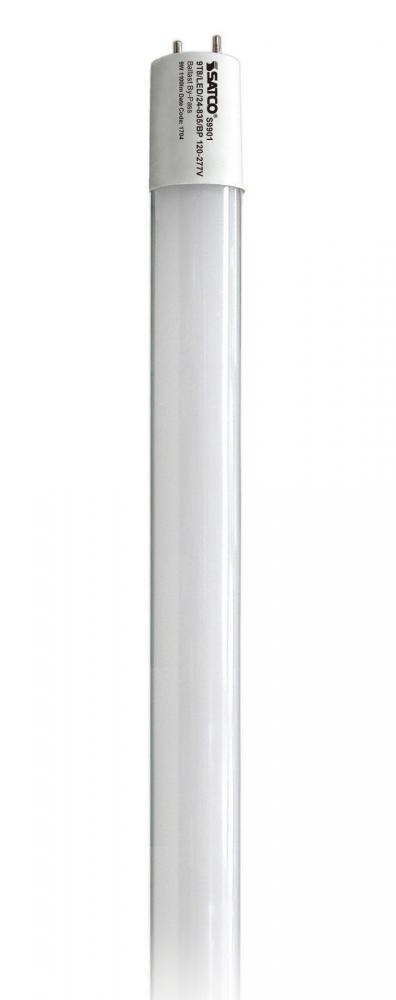

9 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours;Type B Ballast Bypass; 1100
Image may not reflect selected features
9 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours;Type B Ballast Bypass; 1100 (WQ9NA)
9 Watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours;Type B Ballast Bypass; 1100 Lumens
Product Specification
Item #
WQ9NA
Dimensions
Width: 1.00"
Additional product details
Internal #
WQ9NA
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
3500K
Bulb Shape
T8
Diameter
1
EA Length
23.8
Harmonized Codes
8539.50.0051
Length
24
Lumens
1100L
Shap Carton Width
1
Ship Carton Height
1
Ship Weight
0.28
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.24
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
210
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0138
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Neutral White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
122.22 LPW
FCC Compliant
Yes
Flourescent Equivalent
17W
Housing Color
White
Incandescent Equivalent
75W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Location Rating
Damp
Nominal Length
24
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
SDS class
LED_Lamp
Short Description
9T8/LED/24-835/BP 120-277V
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
9W
