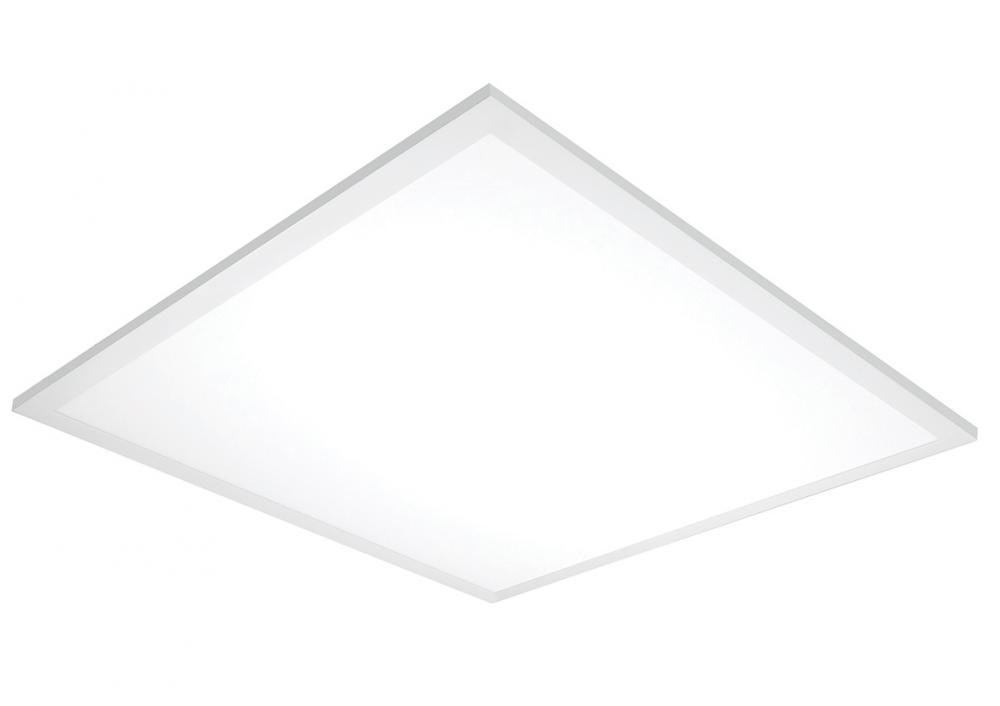

Blink Plus - 45W- 24" x 24" Surface Mount LED - 3000K - White Finish - 120-277V (9ZZCC)

45W; 24 in.; x 24 in.; Surface Mount LED Fixture; 3000K; 90 CRI; Low Profile; White Finish; 120/277V

Product Specification

Item #

9ZZCC

Dimensions

Height: 0.75"

Width: 24.00"

Additional product details

Internal #

9ZZCC

Category

Close-to-Ceiling

Sub Category

Edge Lit

Style

Utility

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White

Dimmable

Yes-Dimmable

Each Height

26.38

Each Length

25.2

Each Width

2.48

Length

Lumens

3500L

Tariff Code

9405.11.8020

Warranty

5 Year Limited - Fixtures

Amps

0.375/0.162A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Closet Rated

Yes

Connection

Hardwire

Country Of Origin

China

CRI

90+

Dimmable Down To

100 to 10 percent

Dimmable Function

120V only

Dimming Type

Reverse Phase

Each Cube

0.9540999999999999

Each Quantity

Efficacy

77.78 LPW

FCC Compliant

Yes

Feature 1

White Finish

Feature 2

Aluminum body, designed for long-lasting illumination

Feature 3

Dimmable

Feature 4

Damp location rated

Feature 5

FCC and RoHS compliant

Feature 6

Hardwire connection

Feature 7

5-year limited warranty

Finish Family

White

Fixture shape

Square

Incandescent Equivalent

200W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Material

Aluminum

Mounting Procedure

Ceiling

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency

50/60Hz

Operating Temp

-17C (+1.4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.8

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

The Blink Plus 45-Watt, 24 inch by 24 inch LED flush mount fixture is a sleek lighting solution for residential and commercial applications. Perfect for kitchens, hallways, and office spaces, this aluminum flush mount fixture comes in a clean white finish.

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

45W/LED/2X2/FLUSH/3K/WH

Temperature (CCT)

3000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Wattage Selectable

Weight Lb.

8.779999999999999
