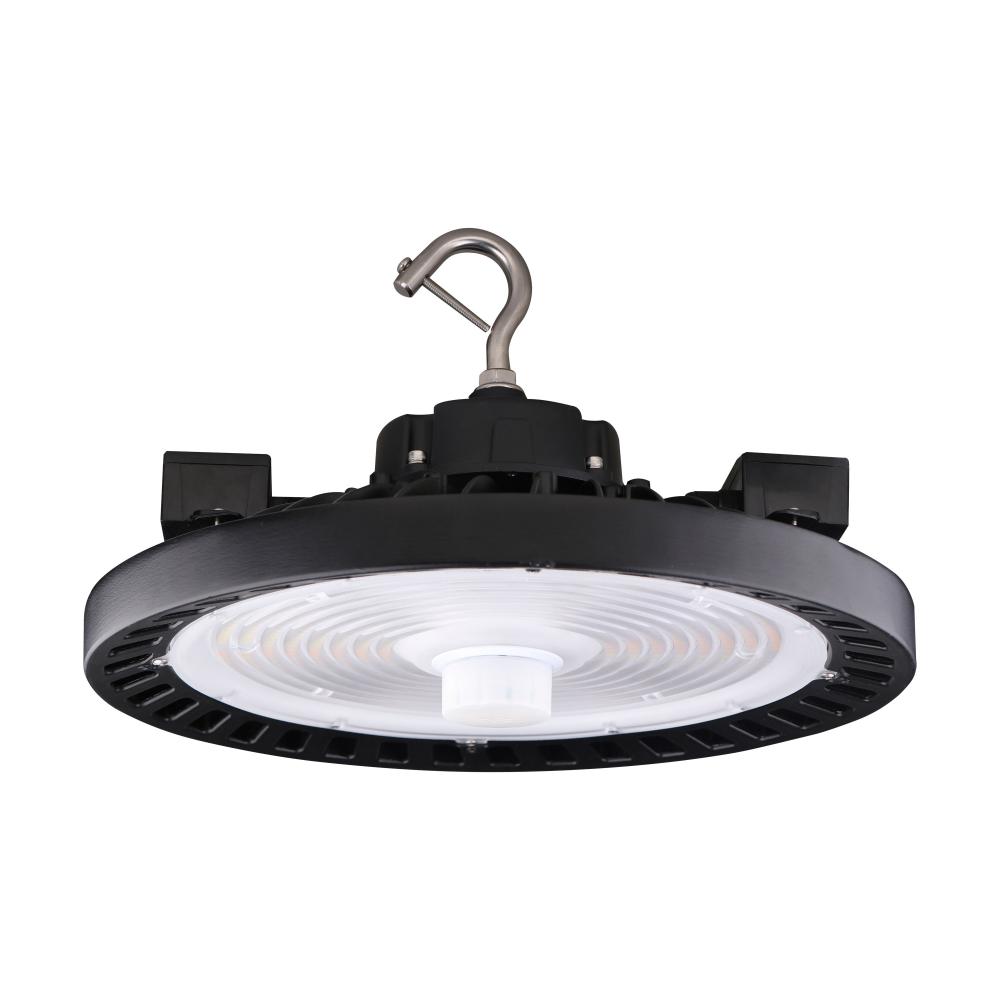

LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 80W/100W/120W; 50,000 hours working
Image may not reflect selected features
/vendors/81/large/65-770R1.jpg
additional image
additional image
additional image
LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 80W/100W/120W; 50,000 hours working (A34YY)
LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 80W/100W/120W; 50,000 hours working life; Black Finish
Product Specification
Item #
A34YY
Dimensions
Height: 8.46"
Width: 12.20"
Additional product details
Internal #
A34YY
Category
Utility
Subcategory
Other Utility
Finish
Black
Style
Traditional
Option
LED , Prop 65
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Diameter
12.2
Dimmable
Yes-Dimmable
Each Height
7.72
Each Length
15.04
Each Width
15.04
Lumens
11840L-18600L
Tariff Code
9405.40.9000
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
0.800-0.289/1.000-0.361/1.200-0.433A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Malaysia
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
1.0106
Each Quantity
1
Efficacy
148.00/152.20/155.00 LPW
FCC Compliant
Yes
Feature 1
Wattage and CCT Selectable
Feature 2
Integrated Sensor Port
Feature 3
IP65
Feature 4
6KV Surge Protection
Feature 5
0-10V Dimming
Feature 6
50,000 Hours
Feature 7
5 Year warranty
Finish Family
Black
HID Equiv
150W/250W
Housing Color
Black
Impact Rating (IK)
IK08
Incandescent Equivalent
500W/600W/1000W
Indoor Outdoor
Indoor
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
The Nuvo 65-770R1 wattage and CCT selectable LED high bay UFO can meet all your lighting needs. This dimmable bulb comes in a black finish made of die cast aluminum with a polycarbonate lens. This durable LED fixture has a 90 degree beam spread and deliver
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling
NSF Approved
Yes
Operating Temp
-40C (-40F) to +55C (+131F)
Order In Multiples Of
1
Pack Type
Box
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Introducing our newest wattage and CCT selectable UFO. With a wattage selectability of 80W/100W/120W and CCT selectability of 3000K/4000K/5000K, this fixture can meet all your lighting needs. Other features include an integrated sensor port for easy field
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
LED UFO HIGHBAY CCT & WATT ADJ
Sloped Ceiling Compatible
No
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
Yes
Weight Lb.
8.35
Finish
