Stellar Custom Motor - SLW with LED Light Kit
Image may not reflect selected features
Stellar Custom Motor - SLW with LED Light Kit (G88G)

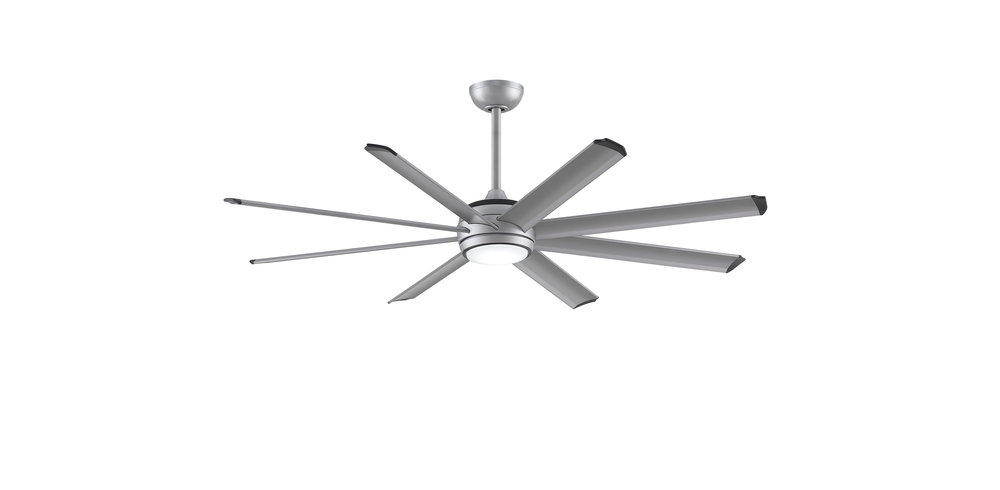

Incredible in size and function, the Fanimation Stellar reigns supreme with swift aluminum blades. Showcasing a 56, 64, or 72 inch blade span, Stellar features an integrated LED CCT Select Temperature Settings light kit and is safe for use in wet locations. Pick the combination that matches your decor, between black and silver finishes. Stellar features fanSync technology so that users may control various fan functionalities with their the Fanimation fanSync app. *Blades sold separately
Energy Information at High Speed
Airflow
11092 Cubic Feet per Minute
Electricity Rate
32 Watts (excluded lights)
Airflow Efficiency
296 Cubic Feet Per Minute Per Watt
Downloads
Click Here to View Spec Sheet Details
Click Here to View Owners Manual
Product Specification
Item #
G88G
Dimensions
Height: 20.61"
Width: 56.00"
Length: "
Additional product details
Internal #
G88G
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Silver
Style
Traditional
Option
Energy Star , Wet Rated , LED
Voltage
10-99
Glass Finish or Style
Frosted , Opal
Lumens
1101-1600
Number of Blades
8+ Blades
Location Rating
Wet Rated
Wattage
18w
Category
Fan-Multi
Finish
Silver
Option
Wet
Family
Stellar Custom
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
18 watt LED light kit with cover and bulb included; Set of 8 Wet Rated blades sold separately , 7335 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with variable speeds, light controls, sleep timer, Fresh Air, Safe Exit, Home Away features , ENERGY STAR Most Efficient 2020 , TR205D handheld remote with CR2032 batteries included
Air Flow CFM
11092
Air Flow Efficiency
296
Amperage
0.46
Blade Pitch
12.6
Bulb Type
18 Watt LED Module
Canopy
6.3 Dia x 2.55 H
Diameter
9.21
Down Rod Included
6
Electricity Used
32
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
56, 64, 72, 84
Light Kit Included
Yes
Lumens / Light Output
1500
Max Length
84
Max Width
84
Motor Fan Speed
16
Motor RPM
76
Motor Size
DC153X25FS
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
10.75
Ship Carton Length
19.49
Ship Carton Width
11.42
Ship Weight
21.56
Sold By
Each
Warranty
Limited Lifetime
Weight
18.92
Airflow Efficiency Low
1072
Airflow Efficiency Medium
514
Avg Airflow Efficiency
465
Avg CFM Energy
10015
Avg Energy Use Watts
22
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
10
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.3 Dia
Canopy Height
2.55 H
Cap Included
Yes
Carton Cubic Feet
1.38
Cartons Per Unit
1
Case Height
10.75
Case Length
19.49
Case Quantity
1
Case Weight Pounds
21.56
Case Width
11.42
CEC Uploaded
Yes
Ceiling To Blade Edge
18.61
Ceiling To Bottom
20.61
CFM Low
4127
CFM Medium
8149
Compatible Accessories
CCK8002SLW, DR1-CPSL, DR1SS-12SLW, DR1SS-18SLW, DR1SS-24SLW, DR1SS-36SLW, DR1SS-48SLW, DR1SS-60SLW, DR1SS-72SLW, SCB1-52
Compatible Blades
B7993-84BLW, B7993-84SLW, B7997-56BLW, B7997-56SLW, B7997-64BLW, B7997-64SLW, B7997-72BLW, B7997-72SLW
Compatible Wall Controls
TW306
Country of Origin
China
CRI
90
Current Draw High
0.58
Current Draw Low
0.07
Current Draw Medium
0.25
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
12
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
9.21
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
37
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
8
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
71
RPM Low (II)
29
RPM Medium (IV)
55
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
4
Watts Medium
16
Watts Per Bulb
18
Wet Rated
Yes


Other Details:
  • 18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (8) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
  • 7335 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Dc Motor With Variable Speeds, Light Controls, Sleep Timer, Fresh Air, Safe Exit, Home Away Features
  • Limited Lifetime Warranty
  • Tr305 Handheld Remote With 23a Battery Included
